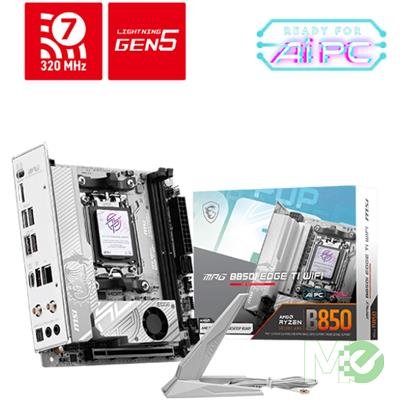

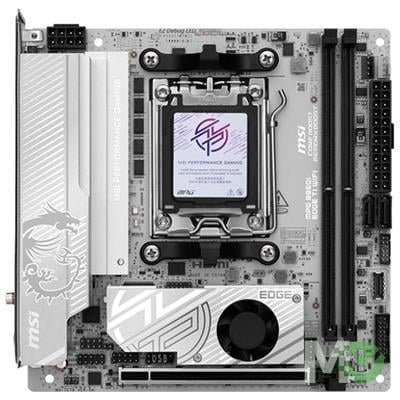

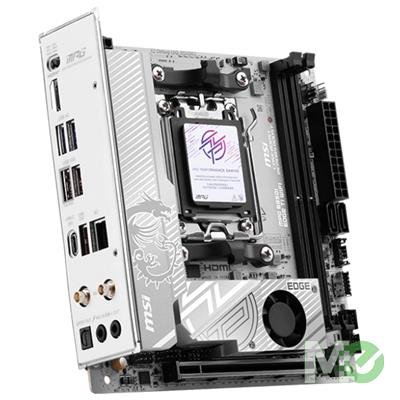

MSI MPG B850I EDGE TI WIFI
Strong Performance, Sleek DesignThe MPG B850I EDGE TI WIFI is a gaming oriented ITX motherboard with a direct 8 phases power, constructed around the latest AMD B850 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7, DDR5 and Frozr design that delivers both performance and style.
- Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
- Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
- Frozr Heatsink Design: Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.
- Dual M.2 Connectors: Onboard 2x M.2 Connectors with one PCIe 5.0 solution, strengthened by M.2 Shield Frozr.
- Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
- 5G Network Solution: Featuring premium 5G LAN to deliver better network experience.
- Wi-Fi 7: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
- Audio Boost 5: Isolated audio with a high quality audio processor for the most immersive gaming experience
Features
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
The MPG B850I EDGE TI WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
- Form Factor: ITX
- Socket Type: AM5
- Chipset: AMD B850
Ultra Power – Direct 8 phases power with 90A Smart Power Stage
With exclusive Core Boost technology and EZ OC Tuning functions, the MPG B850I EDGE TI WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
- Digital PWM IC
- 8-Phase direct CPU power (90A / SPS)
- 2 Phase SOC Power
- 1 Phase MISC Power
Frozr Design
Frozr Guard: Extended Heatsink design, Heat-pipe, 7W/mK MOSFET thermal pads and M.2 Shield Frozr for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers – including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
2 x DDR5 Dual Channel (8200+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.
EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 8200+ MT/s, supports AMD EXPO.
Fortified PCIe 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
- 1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor*)
*MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen5 M.2 Connector
The MPG B850I EDGE TI WIFI motherboard features MSI’s M.2 slots:
- 1 x Gen5 x4 128Gbps slot (with M.2 Shield Frozr)
- 1 x Gen4 x4 64Gbps slot
EZ DIY
The DIY Friendly designs optimize the assemble process and experience.
EZ Antenna: MSI’s latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna’s placement.
EZ Conn-Design: The header which allows users to connect MSI EZ 120 fans (7 pin) or MSI MPG P-series liquid cooling (11 pin) with only one cable.
EZ Front Panel Cable: Provides an easier way to connect the case front panel to the motherboard, allowing you to pre-connect the front panel cables outside the case.
High-speed Connectivity
5G LAN: A Realtek 5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
USB 20Gbps Front Type-C: Connect to devices and transfer files at high bandwidth rates.
